Like when a heavy machine part moves quickly or stops suddenly
By slowing things down smoothly, they protect the equipment from breaking or wearing out
So machines run quietly and efficiently

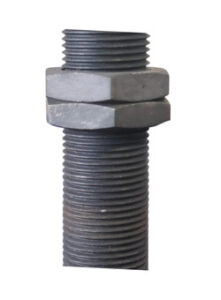

This means the shock absorber comes with two nuts that can be used to securely fasten it to the machine or mounting surface

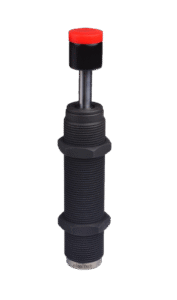

This refers to the resistance level of the shock absorber being pre-set or fixed.

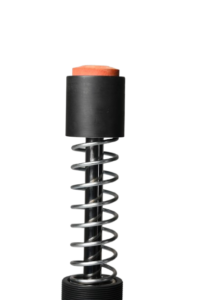

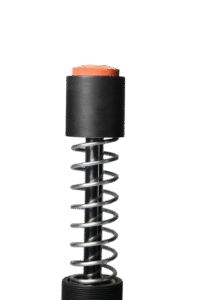

After the shock absorber compresses (absorbs energy), a spring inside pushes it back to its original position
The striker cap is the part that directly makes contact with the moving object or machine part
This is a protective coating on the shock absorber to prevent it from rusting or corroding
The rod is the part that moves in and out of the shock absorber
Viton is a high-performance rubber material used for seals
Pice and place Robots , Pneumatic automation , SPM machines , Welding Robots. Coordinate Measuring Machines
| Model | Thread | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|---|
| AC 8-6-F | M 8X1.0 | 50 | 38 | 6.6 | 2.8 | 6 | 33 | 11 | 3 |
| AC 10-5-F | M 10X1.0 | 38.7 | 27.7z | 8.6 | 3 | 6 | 22.9 | 12.7 | 3 |
| AC 10-8-F | M 10X1.0 | 57 | 43 | 8.6 | 3 | 6 | 38 | 12.7 | 3 |
| AC 12-10-F | M 12X 1.0 | 69.5 | 50 | 10.3 | 3 | 9.5 | 45.5 | 14 | 4 |
| AC 14-12-M | M 14X 1.5 | 102.3 | 76 | 12 | 4 | 14.3 | 67 | 19 | 5 |
| Model | Stroke | Energy (Nm/stroke) | Absorption (Nm/h) | Very Soft | Soft | Hard | Wt. Gm |
|---|---|---|---|---|---|---|---|
| AC 8-6-F | 6 | 2 | 8,800 | 0.5-2.0 | 2.0-6.0 | 2.0-6.0 | 11 |
| AC 10-5-F | 6 | 3 | 10,800 | 1.0-3.0 | 3.0-7.0 | 3.0-7.0 | 14 |
| AC 10-8-F | 8 | 4 | 15,200 | 2.0-4.0 | 4.0-9.0 | 4.0-9.0 | 20 |
| AC 12-10-F | 10 | 5 | 17,640 | 5.0-10.0 | 10.0-30.0 | 10.0-30.0 | 31.5 |
| AC 14-12-M | 12 | 15 | 30,000 | 8.0-50 | 50.0-100.0 | 50.0-100.0 | 80 |
| Model | Thread | A | B | C | D | E | F | G | H | AF |
|---|---|---|---|---|---|---|---|---|---|---|
| AD 14-10-F | M 14X1 | 84 | 61 | 10.5 | 3.3 | 6 | 34 | 11 | 3 | 12 |
| AD 14-16-M | M 14X1.5 | 81 | 61 | 10.5 | 3.3 | 6 | 34 | 11 | 3 | 12 |
| AD 20-25 MU | M 20X1.5 | 180 | 135 | 20 | 6 | 10 | 60 | 19 | 6 | 30 |
| AD 25-40 MU | M 25X1.5 | 194 | 148 | 12 | 8 | 14 | 65 | 22 | 8 | 36 |
| Model | Stroke | Energy (Nm/stroke) | Absorption (Nm/h) | Effective Mass Min. (Kg) | Effective Mass Max. (Kg) | Spring Force Min. (N) | Spring Force Max. (N) | Weight (Gm) |
|---|---|---|---|---|---|---|---|---|
| AD 14-10-FMU | 10 | 13 | 25,000 | 5 | 50 | 10 | 11 | 190 |
| AD 14-16-M | 13 | 17 | 35,000 | 10 | 100 | 12 | 15 | 295 |
| AD 20-25 MU | 25 | 85 | 70,000 | 50 | 500 | 30 | 35 | 346 |
| AD 25-40 MU | 40 | 130 | 117,000 | 100 | 2100 | 36 | 42 | 395 |
| Model | Thread | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| AD 30-25 M | M 30X1.5 | 157 | 95 | 12 | 10 | 28 | 8 | 25 | 7 |
| AD 32-25 M | M 30X1.5 | 157 | 95 | 12 | 10 | 28 | 8 | 25 | 7 |
| AD 35-25 M | M 30X1.5 | 207 | 120 | 12 | 10 | 28 | 8 | 50 | 7 |
| AD 37-75 M | M 37X1.5 | 262 | 145 | 12 | 10 | 28 | 8 | 75 | 7 |
| Model | Stroke | Energy (Nm/stroke) | Absorption (Nm/h) | Effective Mass Min. (Kg) | Effective Mass Max. (Kg) | Spring Force Min. (N) | Spring Force Max. (N) | Weight (Gm) |
|---|---|---|---|---|---|---|---|---|
| AD 30-25 M | 25 | 120 | 82,000 | 10 | 1,800 | 40 | 70 | 640 |
| AD 32-25 M | 25 | 120 | 82,000 | 10 | 1,800 | 40 | 70 | 640 |
| AD 35-25 M | 25 | 120 | 82,000 | 10 | 1,800 | 40 | 70 | 640 |
| AD 37-75 M | 75 | 380 | 120,000 | 13 | 2,700 | 45 | 80 | 680 |
| Model | Thread | A | B | C | D | E | F | G | H | S |
|---|---|---|---|---|---|---|---|---|---|---|
| AD 42-25 MU | M 42×1.5 | 155 | 34 | 19 | 15 | 38 | 7 | 14 | 7 | 45 |
| AD 42-25 U | 1 11/12 UNF | 155 | 34 | 19 | 15 | 38 | 7 | 14 | 7 | 45 |
| AD 42-50 MU | M 42×1.5 | 213 | 42 | 30 | 18 | 55 | 8 | 19 | 8 | 52 |
| AD 42-50 U | 1 11/12 UNF | 213 | 42 | 30 | 18 | 55 | 8 | 19 | 8 | 52 |
| AD 64-25 MU | M 64×2 | 198 | 51.7 | 17 | 12 | 48 | 13 | 28 | 15 | 62 |
| AD 64-25 U | 2 ½-12 UN | 198 | 51.7 | 17 | 12 | 48 | 13 | 28 | 15 | 62 |
| AD 64-50 MU | M 64×2 | 268 | 58 | 28 | 16 | 70 | 16 | 37 | 17 | 70 |
| AD 64-50 U | 2 ½-12 UN | 268 | 58 | 28 | 16 | 70 | 16 | 37 | 17 | 70 |
| AD 85-50 MU | M 85×2 | 295 | 74 | 35 | 16 | 91 | 18 | 50 | 23 | 85 |
| AD 85-50 U | 3-12 UN | 295 | 74 | 35 | 16 | 91 | 18 | 50 | 23 | 85 |
| AD 115-50 MU | M 115×2 | 368 | 90 | 50 | 18 | 109 | 24 | 55 | 25 | 127 |
| AD 115-50 U | 4-12 UN | 368 | 90 | 50 | 18 | 109 | 24 | 55 | 25 | 127 |
| Model | Stroke | EI Energy Nm/stroke | EI/hr Absorption Nm | Me Effective Mass Min. Kg. | Me Effective Mass Max. Kg. | Spring Force Min. N | Spring Force Max. N | Wt. Gm |
|---|---|---|---|---|---|---|---|---|
| AD 42-25 MU | 25 | 250 | 132,000 | 35 | 1000 | 30 | 120 | 1900 |
| AD 42-25 U | 25 | 250 | 132,000 | 35 | 1000 | 30 | 120 | 1900 |
| AD 42-50 MU | 50 | 750 | 390,000 | 150 | 3000 | 80 | 180 | 7500 |
| AD 42-50 U | 50 | 750 | 390,000 | 150 | 3000 | 80 | 180 | 7500 |
| AD 64-50 MU | 50 | 2,300 | 1,150,000 | 600 | 10,000 | 160 | 380 | 23,000 |
| AD 64-50 U | 50 | 2,300 | 1,150,000 | 600 | 10,000 | 160 | 380 | 23,000 |
| AD 115-50 MU | 150 | 15,400 | 7,800,000 | 40,000 | 100,000 | 120 | 380 | 28,000 |
| AD 115-50 U | 150 | 15,400 | 7,800,000 | 40,000 | 100,000 | 120 | 380 | 28,000 |
| AD 115-250 MU | 250 | 18,500 | 2,863,000 | 450 | 148,000 | 120 | 380 | 28,000 |
