Protect Your Switchgear
Ensure Reliable Operations

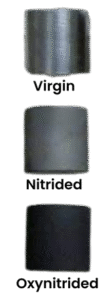

Ensures durability in harsh environments, including high humidity or corrosive conditions. Our collaboration with ARCOR technologies help us deliver components with a garunteed anti corrosive finish upto 7 years
Operates efficiently in a wide range of temperatures, making it ideal for challenging environments.We can adapt to special sealing and hydraulic oils in case your application demands extreme hot hot extreme cold conditions. We cater to any MIL standards MIL -STD-810
Requires minimal upkeep, reducing downtime and operational costs
Our shock absorbers for switchgear are ideal for
Minimizing vibrations in medium and high-voltage switchgear
Ensuring safe transport of switchgear units
Enhancing safety and stability in areas prone to earthquakes
Protecting switchgear in factories, data centers, and office complexes

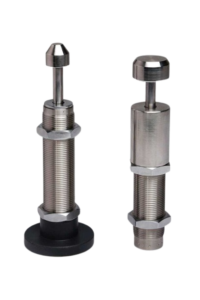

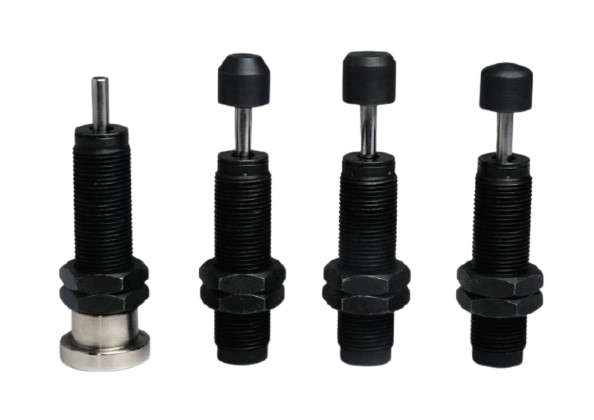

Dimensions and Specifications
| Model | Stroke (mm) | Maximum absorbed energy Nm(ET) | Absorbed Energy per hour Nm(ETc) | Maximum effective weight kg(me) | Highest impact speed M/S (v) | Positioning temperature (non frozen) (°C) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
| DLC3610 | 10 | 60 | 54,000 | 260 | 3.5 | -20–85 | 634 | |
| DLC3615 | 15 | 84 | 75,600 | 400 | 4.0 | 20–85 | 650 | |
| DLC4213 | 13 | 155 | 186,000 | 1,240 | 1.0 | -20-+85 | 890 | |
| DLC10010 | 10 | 1050 | 1,260,000 | 10 | 15 | 40–85 | 8800 | |
| Model | Stroke (mm) | Maximum Absorbed Energy Nm (ET) | Absorbed Energy per Hour Nm (ETc) | Maximum Effective Weight kg (me) | Highest Impact Speed M/S (v) | Positioning Nut (sc) | Operating Temperature (°C) | Weight (g) |
| DLD2517 | 17 | 55 | 37,200 | 300 | 1.5 | 0 | -20-+85 | 337 |
| DLD2520 | 20 | 68 | 43,200 | 200 | 4.5 | 0 | -20-+85 | 269 |
| ET300 | 25 | 84 | 75,600 | 240 | 4.0 | 0 | -20-+85 | 364 |
| DLD3010 | 10 | 65 | 54,000 | 143 | 3.0 | 0 | -20-+85 | 342 |
| DLD3015 | 15 | 98 | 81,400 | 250 | 3.0 | – | -20-+85 | 368 |
| DLD3607 | 7.5 | 65 | 85,800 | 240 | 4.0 | – | -20-+85 | 667 |
| DLD3608 | 8 | 75 | 99,000 | 306 | 4.0 | – | -20-+85 | 620 |
| DLD4212 | 12 | 140 | 168,000 | 1,100 | 8.0 | – | -40~+85 | 1,610 |
